Purpose

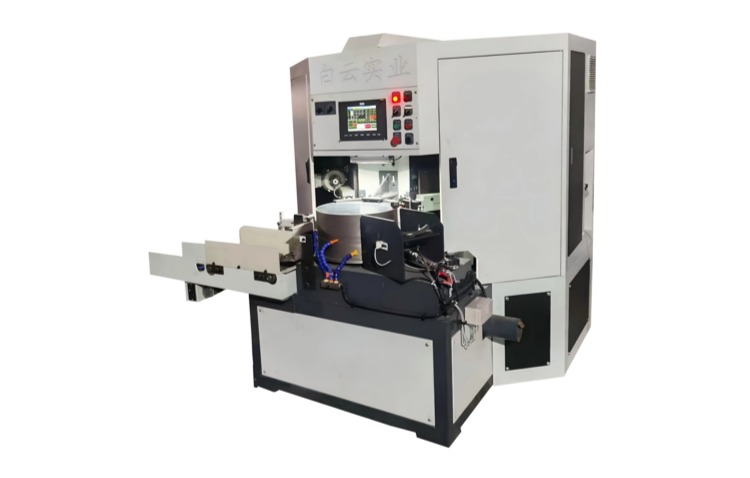

Suitable for drilling operations on brake linings of various commercial vehicles.
Processing Description

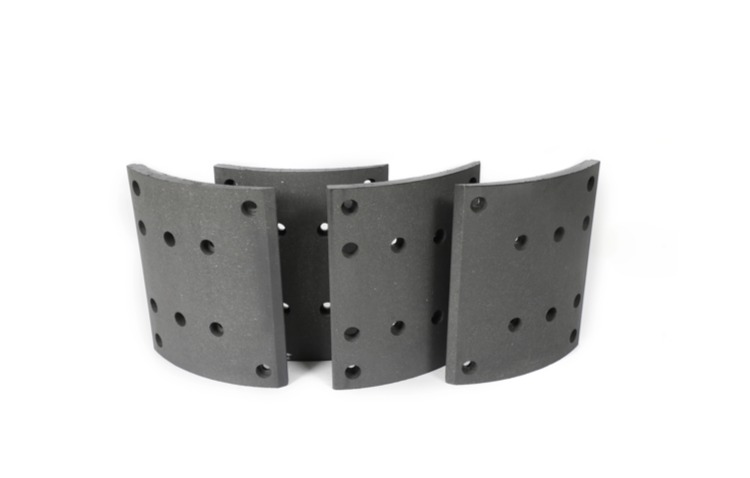

Suitable for drilling rivet holes and alarm wire holes in various brake linings.
Advantages
- It features a nine-axis CNC system, offering simple and intuitive data input.
- Use linear guides, ball screws, couplings, and other components to control positional accuracy.
- A servo motor is used to drive the ball screw, controlling the vertical feed distance and the hole depth.
- Product replacement: Different products can be processed by switching to molds with varying radii, and mold replacement is simple and convenient.
- Production efficiency: 2,000-2,500 pieces per 8-hour shift (efficiency varies depending on hole arrangement).
Technical Parameters
| Item | Details |
| Maximum inside radius | R215mm; |
| Minimum inside radius | R180; |
| Maximum processing width | 222mm; |
| Minimum angle between adjacent holes | Adjustable; |
| Drilling depth control servo motor power | 2.2W; |
| Jig drive servo motor | 1.5 kW; |
| Up/down opening servo motor | Type 80,0.73 kW; |
| Linear guide | 500mm × 30mm; |
| Opening ball screw | 320mm × 25mm; |
| Hole depth ball screw | 400mm × 32mm; |
| Processing accuracy | Linear hole spacing for brake pads ≤ ±0.15mm (accuracy depends on processing efficiency, brake pad internal arc, jig, and drill bit precision). |
Included Materials
- Equipment Instruction Manual ×1
- Certificate of Conformity ×1
- Drilling Fixture ×1 (Pre-installed on Main Unit)
