Purpose
Comprehensive grinding operations for truck drum brake pads, including edge trimming, chamfering, internal arc shaping, and dust brushing.
Product Features

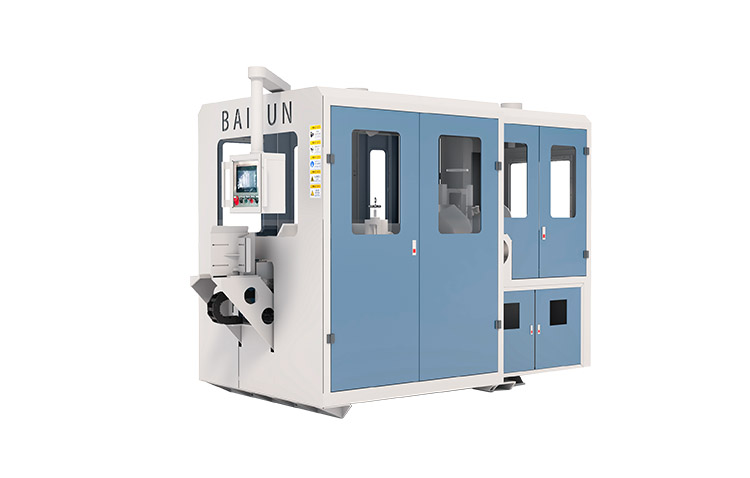

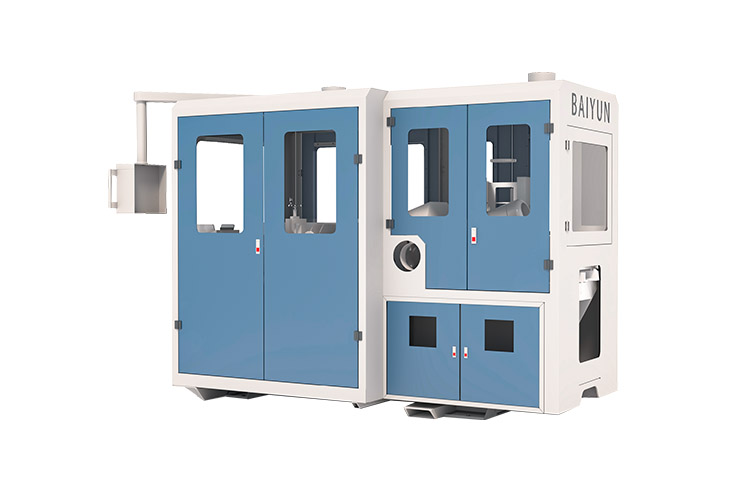

This product is primarily designed as a combined grinding machine for truck drum brake pads, capable of edge trimming, chamfering, internal arc shaping, and dust brushing. It can grind brake pads of both uniform and varying thicknesses. Compared to traditional combined grinding machines, this innovative model offers numerous advantages, including stable grinding dimensions, high precision, a reliable grinding process, and convenient material switching.
Technical Parameters
| Item | Details |
| Inner arc motor | 15 kW, 2850 rpm |
| Beveling motor | 3 kW, 2850 rpm |
| Edge cutting motor | 2.2 kW, 2850 rpm |
| Feed motor | 130 kW servo motor |
| Brake pad dimensions | |
| – Width | 140–220 mm |
| – Inner arc radius | 180–210 mm |
| – Inner arc chord length | >150 mm |
Other parameters
| Item | Details |
| Production per shift (8 hours) | Approximately 2,500 units |
| Dimensions (length × width × height) | 2,900 mm × 1,200 mm × 1,700 mm |
| Total weight | Approximately 2,800 kg |
Included materials
- 1 copy of the user manual.
- 1 copy of the certificate of conformity.
Note: The external protective cover for the main unit can be customized according to customer requirements！
