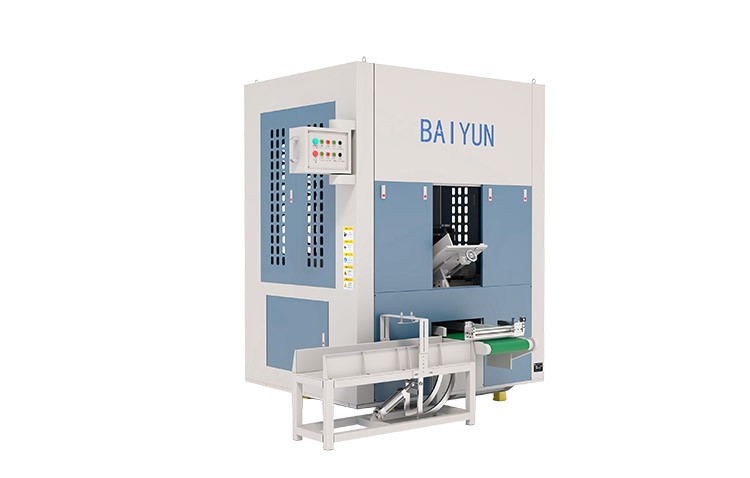

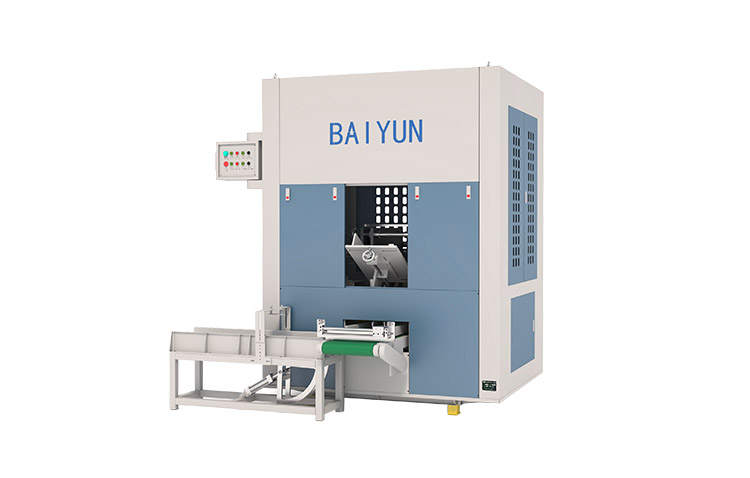

Application
Suitable for double grinding of the outside limit lines of commercial vehicle drum brake shoes, specially designed for Fuwa 16-ton Type A and Type B shoes.
Processing Description
Brake shoes after outside grinding are conveyed by the belt to the front of the limit line grinder. The automatic shoe loading system, composed of photoelectric switches and pneumatic components, feeds the brake shoes to the grinding position. Driven and rotated by a special fixture, the brake shoes pass through the upper and lower limit line grinding stations in sequence. Two diamond grinding wheels (upper and lower) grind the upper and lower limit lines of the brake shoes. After grinding, the automatic shoe unloading system (also composed of photoelectric switches and pneumatic components) pushes the brake shoes back onto the conveyor belt, completing the grinding of the upper and lower limit lines.
Technical Parameters
| Item | Details |
| Processing scope | Special for Fuwa 16-ton Type A and Type B brake shoes |
| Grinding allowance | Adjustable |
| Grinding head power | 4.0 KW, 1440 r/min |
| Grinding wheel specification | Matched with existing production line |
| Fixture power | 0.75 KW |
| Fixture rotation speed | 1.4–14 r/min (variable frequency, adjustable feed speed) |
| Dust suction port | Φ110 mm |
Other Parameters
| Item | Details |
| Production efficiency | Approx. 2500–3000 pieces / 8 hours |
| Overall dimensions (main unit) | 1300 × 1400 × 1800 mm |
| Processing accuracy | Limit line width error ≤ 0.2 mm |
| Surface quality | No spiral lines, no scratches, no black skin |
Standard Documents & Accessories
- Complete set of drawings for the fixture (for replacement of other products).
- Wear parts list (including bearings, oil seals, diamond grinding wheels, etc.).
- Wear parts drawings.
- Operation manual: 1 copy.
- Certificate of conformity: 1 copy.
- Fixture: 1 piece.
