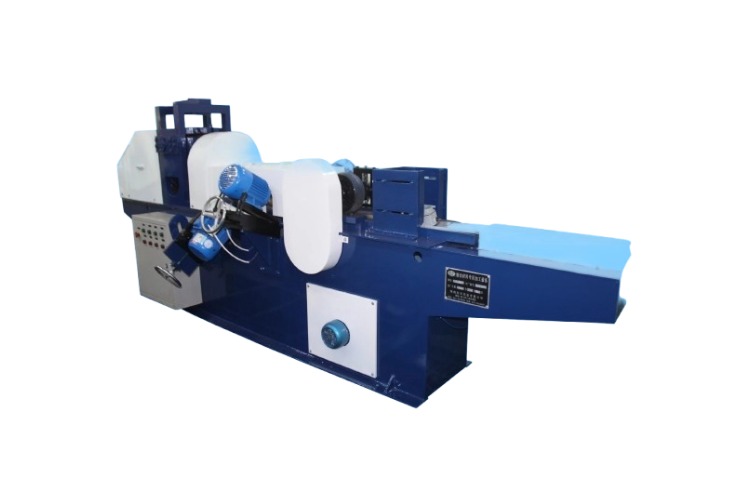

Application
For comprehensive grinding of commercial vehicle drum brake shoes, including end face grinding, chamfering, inside grinding, and brushing.

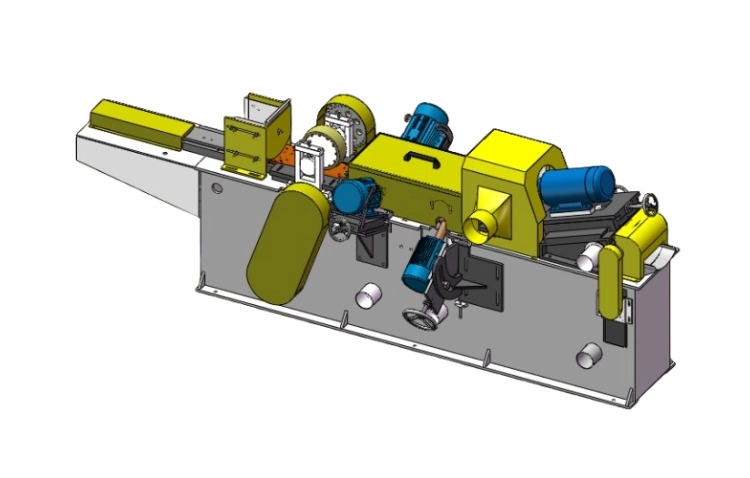

Processing Description
Operators manually place blanks into the storage hopper according to the grinding direction of brake shoes. A cylinder-driven rotary shoe feeding mechanism under the hopper feeds the shoes into processing. The brake shoes move along a dedicated track and sequentially undergo double-sided chord length grinding, double-sided chamfering, inside grinding, and brushing to complete the combined processing. A brushing wheel is installed at the discharge station to reduce airborne contamination during processing.
Equipment Features (Advantages)
- This combined grinding machine completes end face grinding, chamfering, inside grinding, and brushing in one pass for both equal-thickness and unequal-thickness commercial vehicle drum brake shoes.
- High production efficiency: approx. 2500–3000 pieces / 8-hour shift.
- Equipped with diamond wheels for end face, chamfer and inside grinding, featuring long service life.
- Can be equipped with automatic loading & unloading; suitable for both standalone and production line use.
- Customizable for special products per customer requirements.
- Mature design: over 1000 units produced in 40 years.
Technical Parameters
| Item | Details |
| Inside grinding motor | 7.5 kW, 2880 rpm；Dust port: Φ160 mm |
| Chamfer grinding motor | 1.5 kW × 2, 1440 rpm |
| Chamfer diamond wheel | Ø80 mm；Dust port: Φ110 mm |
| End face grinding motor | 1.5 kW × 2, 1440 rpm |
| Trimming diamond wheel | Ø60 mm；Dust port: Φ110 mm |
| Dust brushing motor | 0.75 kW, 6-pole × 1 |
| Processing range | Customized / dedicated |
| Processing thickness | ≤1.0 mm |
| Inside R accuracy | ≤0.15 mm |
| Output | approx. 2500–3000 pieces / 8-hour shift |
| Overall dimensions | Approx. 3900×1300×1700 mm |
| Total weight | Approx. 2000 kg |
Standard Documents
- Operation Manual: 1 copy
- Certificate of Conformity: 1 copy
- Circuit Diagram: 1 copy
- Grinding Wheel Drawing: 1 copy
