Purpose
Suitable for the grouting process of Fuhua 16-ton TA or TB brake pads used in heavy-duty trucks.
Processing Description

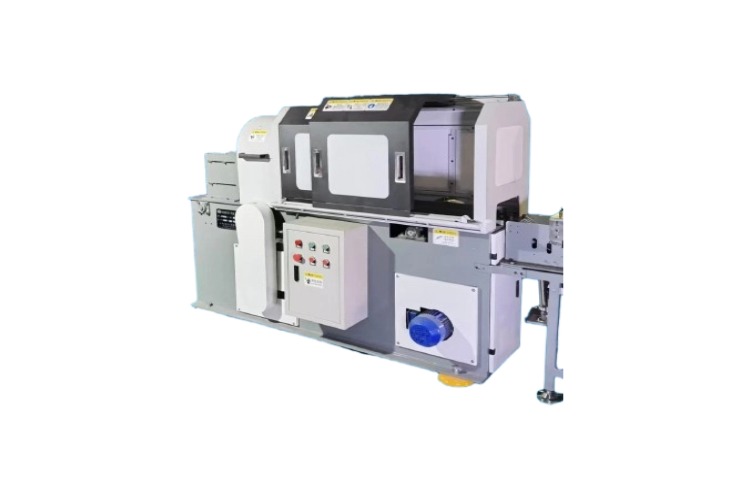

The brake pads of the storage hopper are advanced by a dedicated chain, sequentially passing through the rotating inner and outer arc wire wheels for ash removal. This process completes the surface ash-brushing operation on both the inner and outer surfaces of the brake pads in a single pass, after which the chain transports the workpiece out of the ash-brushing zone.
Equipment Advantages
- High efficiency.
- low operating cost.
- wide application range.
Technical Parameters
| Item | Details |
| Brush dusting motor power | 6 – pole, 0.75 kW (2 units) |
| Dust collection ports | 3, each ∮100 mm |
| Feeding speed | 1.8–2 m/min |
| Production efficiency | approximately 3,000–4,000 pieces per shift |
| Drive motor | 0.75 kW, equipped with cycloidal pinwheel and reducer; Single unit |
| Air pressure | 6 Pa |
| Pneumatic soot blowing | simultaneous internal and external arc operation |
| Automatic sheet feeding | multi – sheet stacking at the feeding inlet |
| Technical documents provided | 1 copy of user manual and 1 copy of certification |
