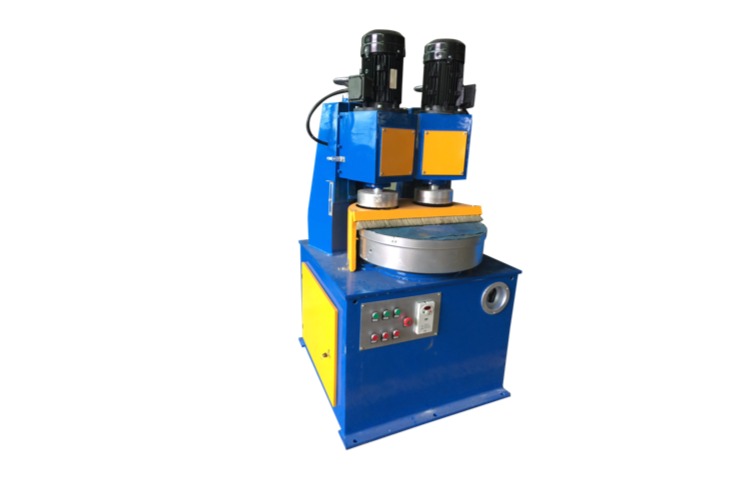

Purpose
Suitable for surface grinding of disc brake pads of various models.
Performance Features
Equipped with a disc-type electromagnetic chuck that enables zoned automatic clamping and release, allowing continuous sheet feeding for high production efficiency. The specialized structure on the disc is designed for grinding non-planar disc-shaped sheets with protruding back surfaces, featuring simple operation, easy adjustment, and high precision. The entire grinding process is completed in one pass through rough grinding and fine grinding.
Technical Parameters
| Item | Parameter |
| Processing Scope | Suitable for all common disc-shaped sheets |
| Suction Zone | 150-degree angle |
| Loading/Unloading Zone | 210-degree angle |
| Suction Cup Dimensions | ∮600 |
| Suction Cup Voltage | 24V |
| Drive Power | 0.75kW (1430 rpm) |
| Suction Cup Speed | 1.5 rpm |
| Coarse Grinding Power | 3kW (2880 rpm) |
| Coarse Grinding Wheel | ∮200 (diamond wheel) |
| Finishing Grinding Power | 2.2kW (1420 rpm) |
| Finishing Grinding Wheel | ∮200 (diamond wheel) |
| Daily Output | 6,000-8,000 sheets |
| Dimensions | 910mm × 950mm × 1800mm |
| Total Weight | Approximately 1,600kg |
Included Materials
- 1 user manual
- 1 copy of the certification certificate
