Purpose

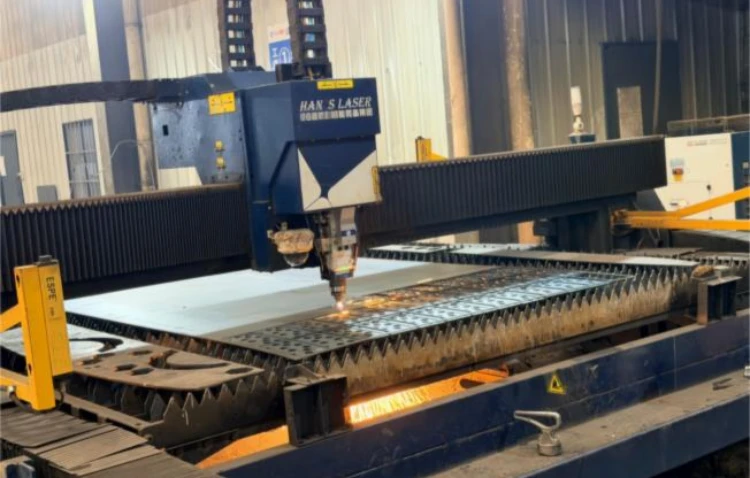

Utilizing CNC laser technology, this machine cuts steel plates into the panel and rib plates used for horseshoes, and is also suitable for laser cutting and processing of steel backings for disc brake pads.
Product Features

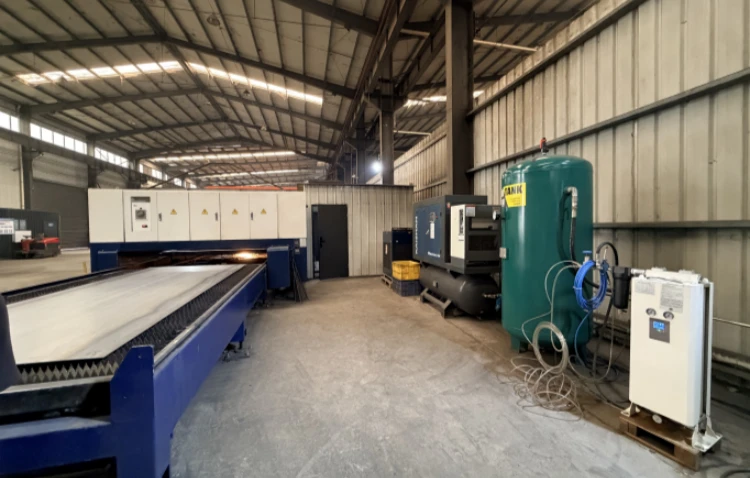

This system consists of a modular adsorption dryer, a cold dryer, an air storage tank, a laser water-cooled unit, a freeze dryer, and a cutting head, offering simple operation, high cutting efficiency, and a smooth cutting surface.
Basic Parameters
| Item | Specification |
| Machine capacity | 30/50/75 kVA |
| Voltage | AC 3P 380V N PE |
| Power protection rating | IP 54 |
| Frequency | 50/60 Hz |
| Plate dimensions | 7.75mm × 3960mm × 1505mm |
| Output – Plain plates | 25 min/160 pieces |
| Output – Printed plates | 35 min/160 pieces |
| Output – Panel | 10 min/62 pieces |
