Application

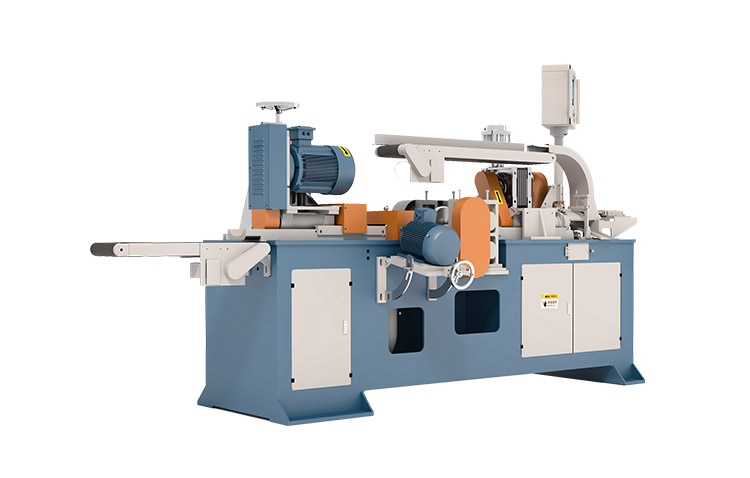

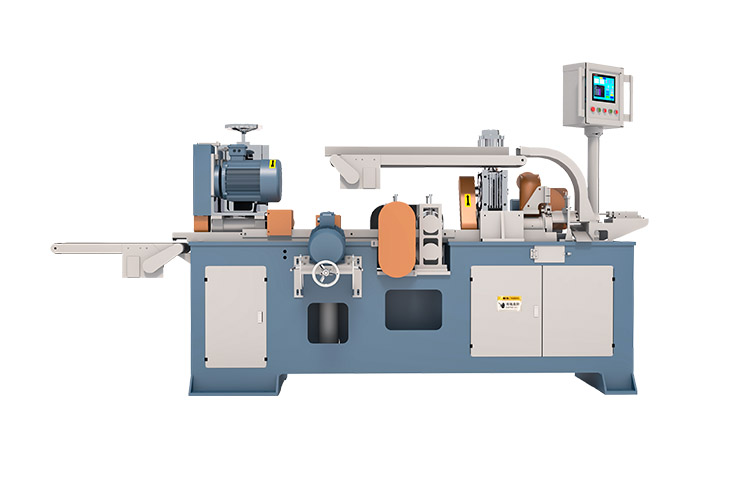

Comprehensive grinding processing for motorcycle brake pads, including outer arc, chamfering, inner arc, and dust brushing.
Performance Characteristics
The equipment features a compact structure with minimal floor space occupation and employs an independently developed chip feeding mechanism. The continuous and seamless chip feeding ensures high grinding efficiency, while the unique feed grinding method guarantees stable and precise brake pad grinding dimensions. The device is easy to operate and convenient for adjustment, significantly reducing manual labor intensity.
Technical Parameters
| Item | Details |
| External arc motor | 3 kW, 2800 rpm |
| Lathe spindle motor | 1.1 kW, 2800 rpm |
| Internal arc motor | 3 kW, 1440 rpm |
| Chamfering motor | 1.1 kW, 2800 rpm |
| Grinding product | Motorcycle brake pads |
Other parameters
| Item | Details |
| Output | Approximately 3,500 pieces/hour; ~28,000 pieces per 8-hour shift |
| Dimensions | 2,400mm × 1,250mm × 1,400mm |
| Total weight | Approximately 1,500kg |
Accompanying materials
- 1 copy of the instruction manual
- 1 copy of the certificate of conformity
Note:You can change the configuration according to user requirements or other special design!
