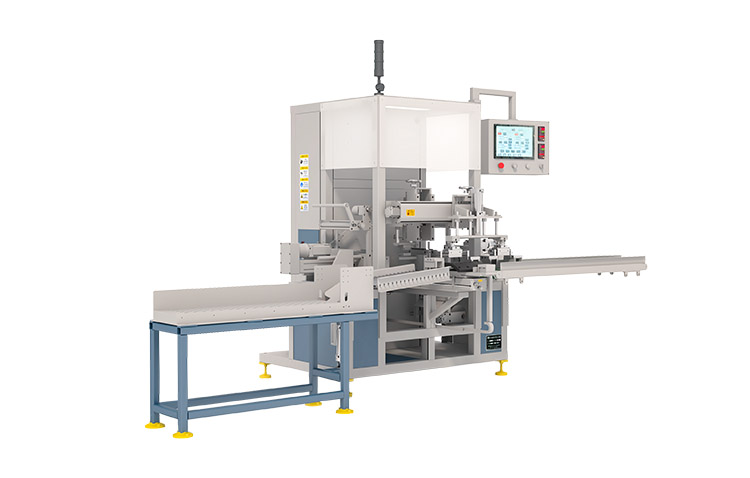

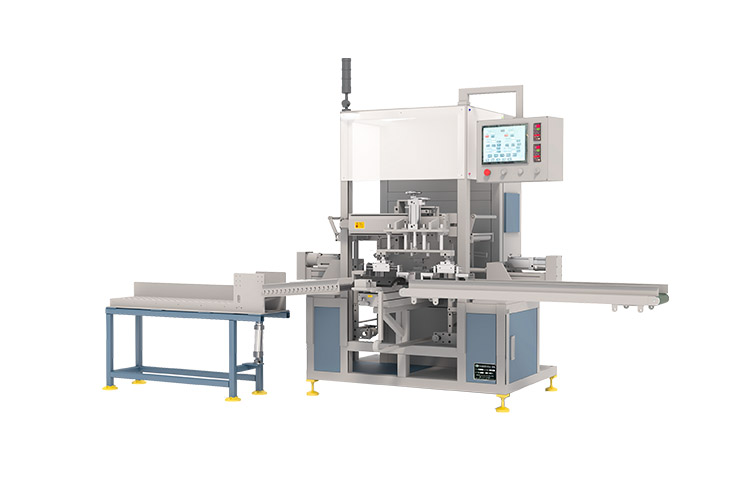

Application
This flat hot stamping machine is a special equipment that transfers colored films such as hot stamping foil (anodized aluminum) and transfer film onto the end face of brake pads by means of temperature (100℃ – 380℃) and pressure.
Product Features
Fast stamping speed;good stamping effect;low energy consumption;high efficiency;easy operation.
Main Structure

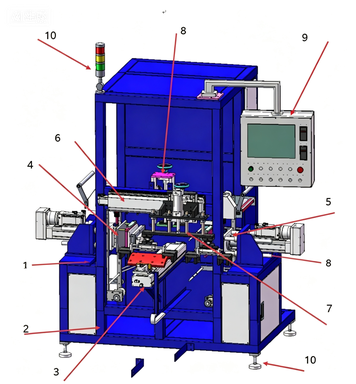

Main Structure List:
| NO. | Name | NO. | Name |
| 1 | Adjustable foot cup | 2 | Machine cabinet |
| 3 | Front and rear module | 4 | Left hot stamping head |
| 5 | Right hot stamping head | 6 | Manipulator traverse module |
| 7 | Manipulator lifting assembly | 8 | Material pressing assembly |
| 9 | Electric control cabinet | 10 | Three-color indicator light |
Technical Parameters
| Item | Details |
| Brake pad outer radius | 150 – 250mm |
| Brake pad width | 80 – 230mm |
| Grinding head power | 4 – pole (15kW) |
| Diamond grinding wheel | ∮375×240 |
| Grinding head feed motor | 2.4kW; 130SJT – M150B servo motor |
| Tire turning power | 1.8kW; 130SJT – M100B servo motor |
| Tire turning speed | Servo – adjustable |
| Production efficiency | Approximately 500 pieces/hour |
| Dust collection port | 1 unit at ∮160mm and 1 unit at ∮100mm |
| Weight | Approximately 3000kg |
| Dimensions (length×width×height) | 2150×2350×1900mm |
