Purpose

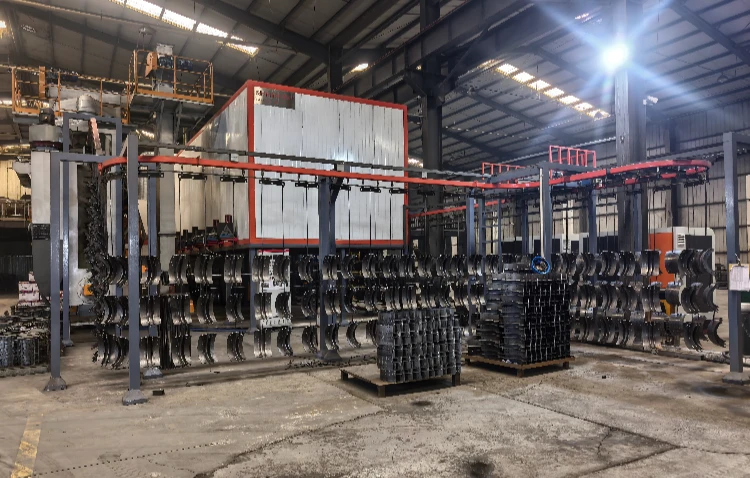

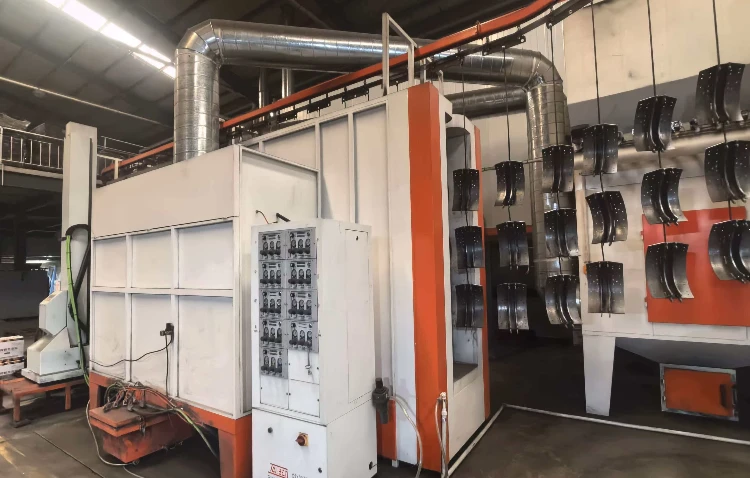

This production line consists of surface powder spraying units, curing ovens, suspended conveyors, electrical control systems, and exhaust gas treatment systems. Process sequence: Workpiece loading → Powder spraying → Curing → Cooling → Workpiece unloading. The process primarily employs electrostatic adsorption to uniformly deposit powder onto the horseshoe surface, forming a corrosion-resistant protective layer through high-temperature curing.
Product Features
Utilizes a suspended chain conveying system combined with a reciprocating automatic spray gun to achieve automated conveying, spraying, and curing. Suitable for batch production.
Basic Parameters
| Item | Parameter |
| Maximum overall dimensions for workpiece suspension | L220×W2170×H380mm*3 |
| Maximum workpiece weight | ≤50kg |
| Operating speed | Approximately 2.5 m/min (adjustable from 0 to 5 m/min) |
| Heating source | Gas heating |
| Workpiece suspension and conveying mechanism | One set |
| Powder electrostatic spraying equipment | One set, Taiwan-made |
| Heating and curing oven production line | One set, Gas-type |
| Exhaust gas treatment system | One set, Collection + photochemical decomposition + activated carbon adsorption + fan discharge |
Notes：
- This production line is a customized device that can be manufactured according to customer design specifications.
- The floor area and specific dimensions shall be as specified in the design drawings.
