Purpose

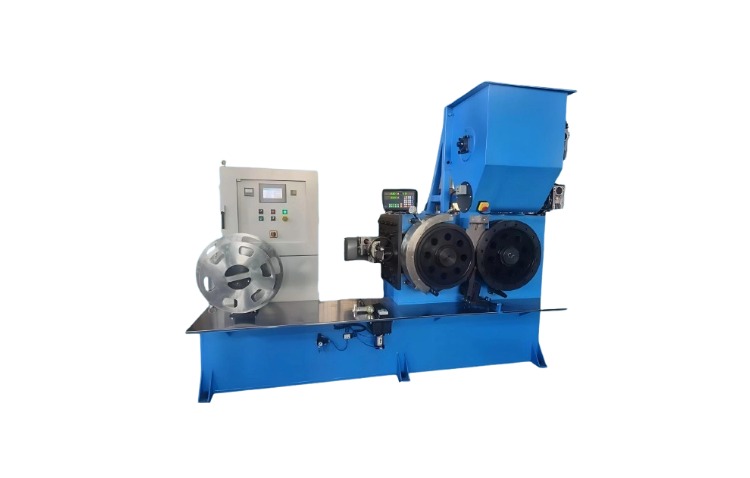

Used for continuous roll pressing molding of rubber materials for motorcycle and passenger vehicle drum brake pads.
Performance Characteristics
The roll pressing process features a simple production procedure, requiring neither a press nor molds. It enables diverse product types, wide application scope for roll-pressed products, high production efficiency, minimal pollution, and low investment costs.
Technical Parameters
| Item | Parameter |
| Fixed roller dimensions | Diameter × Width = Φ458 × 150mm(Rollers with widths up to 150mm are replaceable based on user requirements) |
| Adjustable roller dimensions | Diameter × Width = Φ406 × 150mm(Rollers with widths up to 150mm are replaceable based on user requirements) |
| Processing range | Width: 20mm–150mmThickness: ≤25mm |
| Production rate | 4–20 m/min |
| Belt diameter | 300–600 mm |
| Drive motor power | 7.5 kW × 2 |
| Speed control method | AC variable frequency drive |
| Material hopper capacity | 250 L |
| Hopper mixing motor | 2.2 kW × 3 |
| Heating power | 3.0 kW × 2 |
| Overall dimensions | 3670×1320×2290 mm |
| Equipment weight | Approximately 2600 kg |
