Application

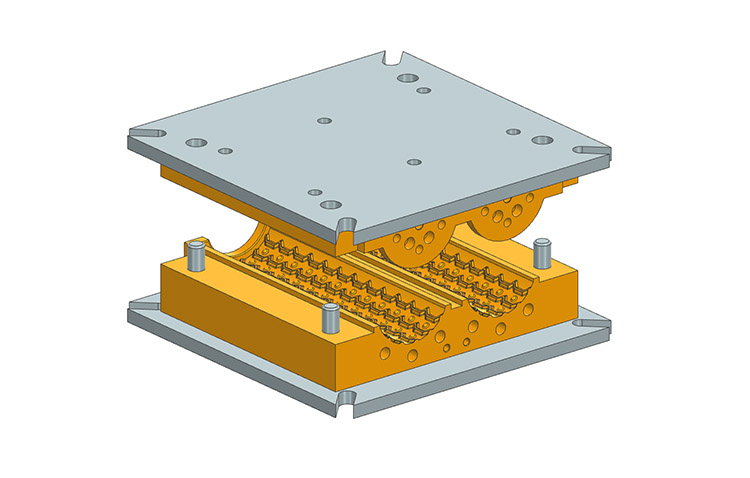

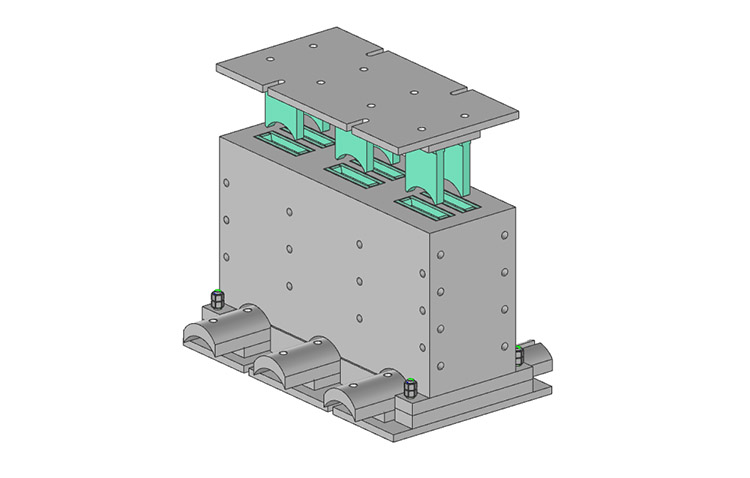

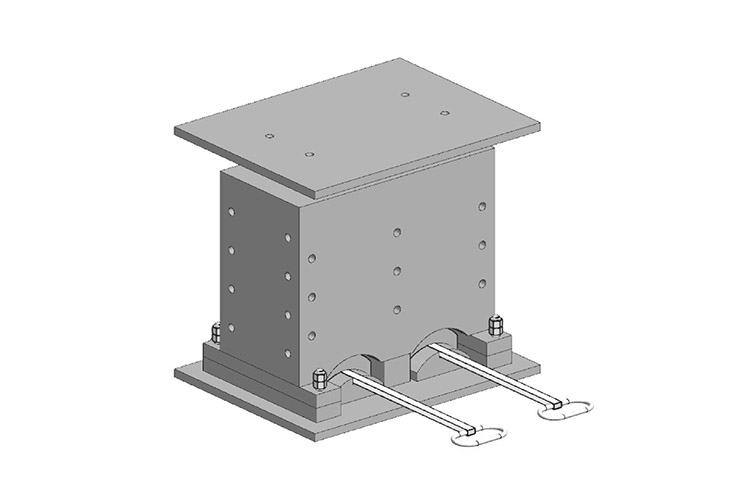

Suitable for a hot pressed molding for drum brakes .
Performance Characteristics
Using method
In the press on a fixed mold, and then heating to process temperature, the mold on the template up, put on that weight of raw materials, shared evenly coated over the mold release agent on the mold cavity plate cut off raw materials, and then pressurized by the technological requirements, gas, pressure. The relief of films to pull back push plate, the downward pressure tablets. Blank film pressure plate pull out after the use of pull-chip, a chip,
so the cycle repeated.
Technical Parameters
| Item | Details |
| Texture template | 40Gr forging materials |
| Template hardness | 38° – 42° |
| Chrome plating thickness | 0.03 – 0.05mm branded hardware |
| Cavity Material | 45 # steel castings |
| Box board material | ≥ 55° – 60° GCr15 forging materials |
| Heating methods | electric induction heating, electric pipe heating, electric board heating |
Random data/duplicate parts
- Wooden packaging
- Each cavity with one block of the backup partition
- One qualification
- One debugging report
