Purpose

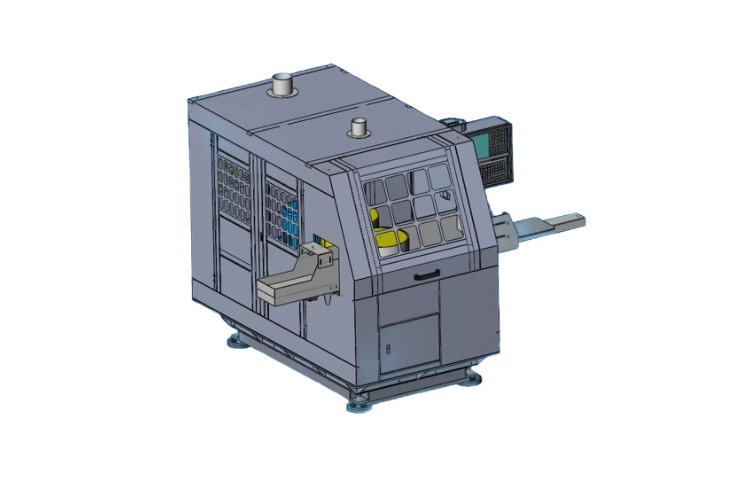

This machine is designed for the external arc grinding of drum-type brake pads with varying thickness (or uniform thickness).
Product Features
- A proven mature product with over 1,000 units produced in 40 years.
- Specialized CNC control system for rapid product variety changes.
- The diamond grinding wheel is durable.
- The product features high machining precision with verticality and round runout tolerance of <±0.10mm.
- It is equipped with automatic loading/unloading functionality and is compatible with both standalone operation and assembly line applications.
- We can customize products to meet your specific needs.
Technical Parameters
This equipment is designed for processing drum brake pads within the specified parametersp：
| Item | Details |
| Brake pad outer radius | 150 – 250mm |
| Brake pad width | 80 – 230mm |
| Grinding head power | 4 – pole (15kW) |
| Diamond grinding wheel | ∮375×240 |
| Grinding head feed motor | 2.4kW; 130SJT – M150B servo motor |
| Tire turning power | 1.8kW; 130SJT – M100B servo motor |
| Tire turning speed | Servo – adjustable |
| Production efficiency | Approximately 500 pieces/hour |
| Dust collection port | 1 unit at ∮160mm and 1 unit at ∮100mm |
| Weight | Approximately 3000kg |
| Dimensions (length×width×height) | 2150×2350×1900mm |
