Automatic Packaging line For Brake Pads

Production speed: 2000 to 3000 pieces/hour.

Share to

Power Supply：220V, 50Hz, 16A, 3KW

Packaging Speed：20 – 25 packages per minute

Delivery Speed：18m/min

Basic design parameters

Production speed: 2000 to 3000 pieces/hour.

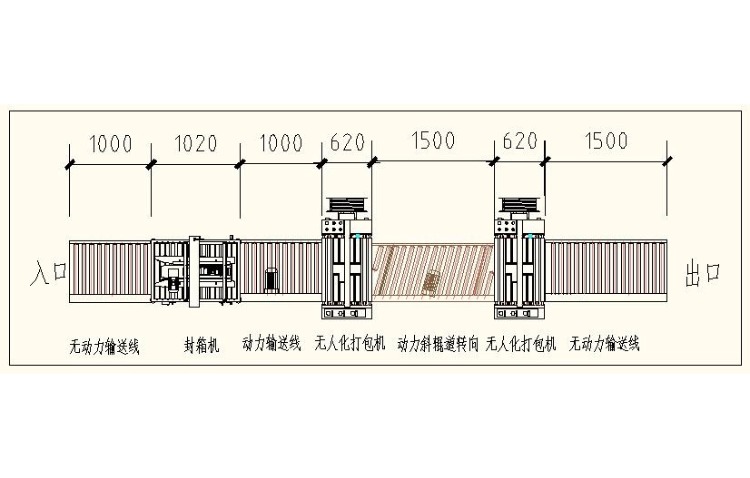

Manual stacking—Automatic bagging—Shrink wrapping—Manual boxing—Automatic sealing—Unmanned packaging—Output

The overall layout should be rational, with unimpeded flow of personnel and materials, to meet the needs of product packaging processes. The equipment must operate smoothly and reliably, maintaining continuous normal operation under environmental conditions of 98%RH and 0~40°C. Normal operating noise should be ≤40dB, and the noise during instant bundling should not exceed 70dB.
The equipment has reliable protection grounding, and the control mode and distribution of control points facilitate the management of the production workshop and the safe operation of the operators.
The equipment is controlled by PLC, featuring an aesthetically pleasing design with a durable surface coating that gives it a clean and modern look.
The overall design and local treatment of the equipment are fully considered to facilitate the troubleshooting and daily maintenance.

Item	Details
Power Supply	220V, 50Hz, 16A, 3KW
Packaging Speed	20 – 25 packages per minute
Delivery Speed	18m/min
Workbench Height	780mm
Machine Dimensions	L1800mm x W850mm x H1600mm
Machine Weight	520kg (approximate)
Knife Material	Quenched and tempered carbon steel with Teflon coating
Incision and Closure Time	<1.5 seconds per channel
Sealing Temperature	180 – 225°C

Item	Details

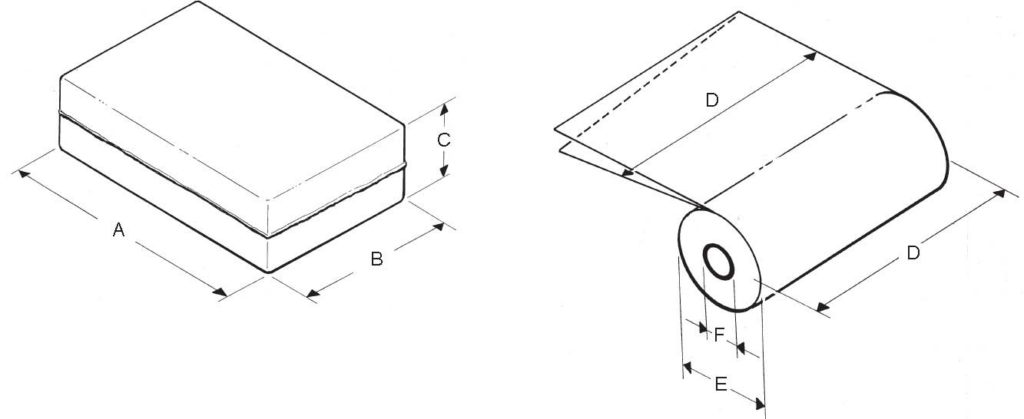

Minimum Size for a Bag (ABC)	90mm x 90mm x 10mm
Maximum Packaging Dimensions (ABC)	550mm x 450mm x 150mm
Other Maximum Dimensions	L500mm x W400mm x H120mm; total width and height ≤450mm
Maximum Note	B + C cannot exceed 500mm
Usage Note	Do not use the maximum size ABC for packaging

Item	Details
Type	POF shrink film
Thickness Range	0.015 – 0.019 mm
Transverse Shrinkage Ratio of Membrane	60%
Longitudinal Shrinkage Ratio of Membrane	60%

Item	Details
Power Supply	380V 50Hz 13KW
Machine Dimensions	L1800×W985×H1320mm
Oven Chamber Dimensions	L1500×W450×H250mm
Adjustable Workbench Height	850mm
Adjustable Transport Speed	0 – 18m/min
Adjustable Temperature Control Range	0 – 180℃
Operating Temperature Range	150 – 230℃

Item	Details
Machine Performance	Manual positioning adjustment for left/right and up/down when changing carton specifications, with automatic timely conveyance and simultaneous upper/lower sealing
Power Supply	220V/50Hz/600W
Dimensions	L1090×W890×H (working surface plus 750mm)
Working Surface Height	550 – 750mm (adjustable)
Foot Cup Sealing Speed	19m/min
Sealing Specifications – Length	150 – ∞
Sealing Specifications – Width	120 – 480mm
Sealing Specifications – Height	120 – 500mm
Sealing Tape	Kraft paper tape, BOPP tape
Tape Dimensions	48 – 72mm
Weight	100kg
Environmental Conditions – Humidity	≤98%
Environmental Conditions – Temperature	0 – 40℃
Noise in Working Environment	≤75dB

Item	Details
Current and Power	380V/50Hz, 1.27KW/5A
Overall Machine Dimensions	L1580mm × W650mm × H1418mm
Frame Dimensions	Width: 800mm × Height: 600mm (customizable as needed)
Workbench Height	750mm (customizable as needed)
Packing Speed	≤2.5 seconds per strap
Strapping Tension	0 – 90kg (adjustable)
Strapping Pattern	Parallel strapping, 1 to multiple straps, with photoelectric control, manual, etc.
Conveyor Roller on Workbench	Direct conveyance when strapping is not required
Packing Tape Requirements	Width: 9 – 15 (±1) mm, Thickness: 0.55 – 1.0 (±0.1) mm
Tape Reel Compatibility	Width: 160mm; Inner diameter: 210mm; Outer diameter: 400 – 500mm
Bottom Adhesion	Adhesion area ≥ 90%, Adhesion width ≥ 20mm, Adhesion position deviation ≤ 2mm
Product Dimensions	Length (L): 200 – ∞ mm (300 ≤ Width (W) ≤ 700mm), Height (H): ≤500mm
