Purpose
Be used for packaging brakes with plastic film.
Product Features
Working full automatically.
Technical Parameters

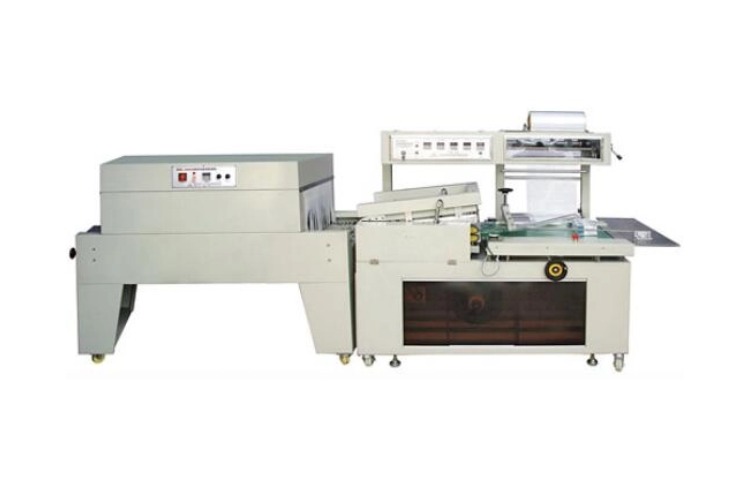

Cutting Machine 560A
| Item | Parameter |
| Model | 560A |
| Power Supply | AC 380V/220V, 50Hz |
| Maximum Packaging Speed | 20 packages/min |
| Product Dimensions | Length ≤470mm, Width ≤450mm, Height ≤180mm |
| Cutting Blade Dimensions | 570mm × 480mm |
| Rated Power | 1.5 kW |
| Film Type | POF (foldable film) |
| Maximum Film Width | 550mm |
| Working Pressure | 0.8 MPa |
| Working Platform Height | 780–850mm |
| External Dimensions | 1600 × 770 × 1450mm |
Heat Shrink Machine 4520
| Item | Parameter |
| Model | 4520 |
| Power Supply | 380V, 50Hz |
| Transport Capacity | 10 kg |
| Product Dimensions | Width ≤350mm, Height ≤150mm |
| Furnace Dimensions | 450 × 200 × 1000 mm |
| Rated Power | 8 kW |
| Transport Speed | 8 m/min |
| Machine Weight | 55 kg |
| External Dimensions | 130 × 120 × 64 mm |
