BY1010 Brake Pad Heat Treatment Tunnel

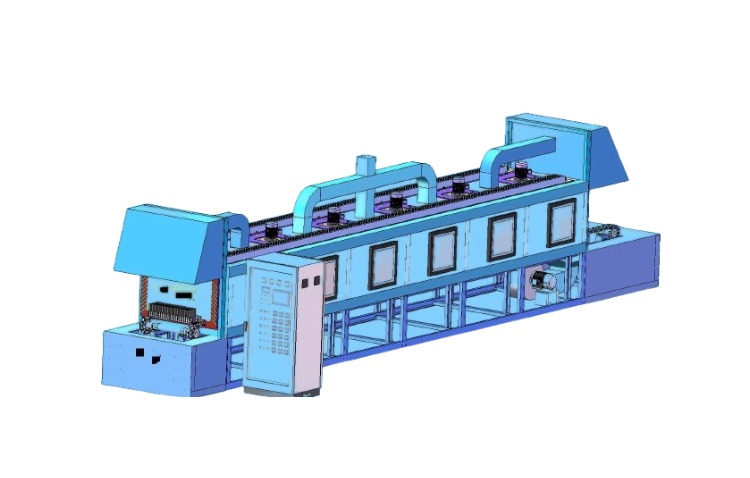

This product is primarily designed as a combined grinding machine for truck drum brake pads, capable of edge trimming, chamfering, internal arc shaping, and dust brushing. It can grind brake pads of both uniform and varying thicknesses. Compared to traditional combined grinding machines, this innovative model offers numerous advantages, including stable grinding dimensions, high precision, a reliable grinding process, and convenient material switching.
Equipment Name: Drum Pad Specialized Tunnel Furnace.
Equipment Model: Non-standard.
Equipment Quantity:1 set.
Equipment Composition: The tunnel consists of a feeding section (1150mm), a heat treatment section (5-zone temperature control, 9550mm), a cooling section (1400mm), a conveying and transmission system, an electric heating and hot air circulation system, and electrical control components.
Equipment Color: Yellow frame, blue body.
Purpose: Primarily for drum pad heat treatment. Cycle Control: Designed for a 10-minute cycle, completing the heat treatment section, with a total heat treatment time of approximately 6 hours.
Product Features
This product is primarily designed as a combined grinding machine for truck drum brake pads, capable of edge trimming, chamfering, internal arc shaping, and dust brushing. It can grind brake pads of both uniform and varying thicknesses. Compared to traditional combined grinding machines, this innovative model offers numerous advantages, including stable grinding dimensions, high precision, a reliable grinding process, and convenient material switching.
Technical Parameters
Item
Details
Total Equipment Power
Approximately 60KW
External Dimensions
1100×12290×1710mm (width×length×height)
Power Supply
3-phase 4-wire + PE, ~380V, 50Hz; Control Voltage: ~220V, 50Hz
Temperature Range
Room temperature to +220℃ (temperature adjustable)
Temperature Stability
≤2℃
Temperature Fluctuation
≤±1℃
Temperature Uniformity
≤±4℃
Thermal Insulation
Difference between furnace surface temperature and ambient temperature ≤25℃
Heating Power
12KW/section × 5 sections
Blower Power
0.25KW × 3 units/section × 5 sections
Cooling Fan Power
0.37KW × 2 units
Conveying Speed
Step-by-step rhythm mode, 10-minute intervals/2 frames side by side
