Purpose

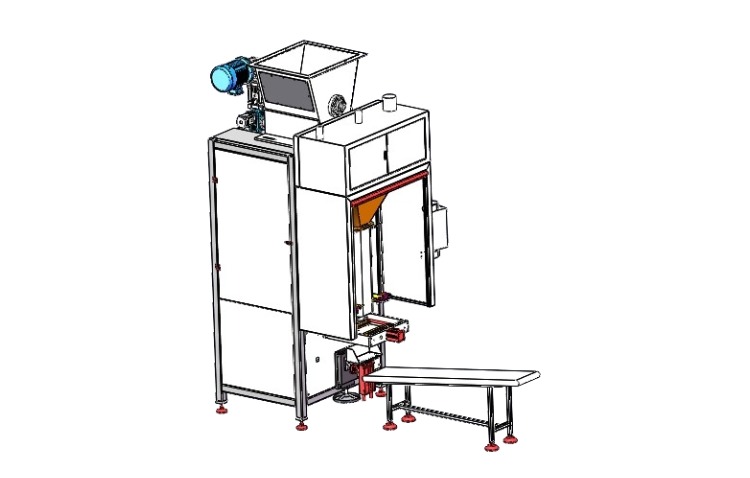

This machine is suitable for bagging drum brake pad materials for various heavy-duty trucks and is used in conjunction with die setting. The preceding process also requires the BY219 Automatic Bagging Machine.
Product Features
This machine primarily employs a screw conveyor for automatic material weighing, pipeline-guided automatic bag filling, pneumatic and electric heating tube-based automatic sealing, with the conveyed material being easily accessible for manual collection.
Technical Parameters
| Item | Parameter |
| Stirring Mechanism | 1.1 kW motor, 2.8 rpm |
| Feeding Mechanism | |
| – Servo Motor | 0.75 kW |
| – Cylinder for Material Weighing | TN16x60 |
| – Load Cell | 20 kg |
| – Cylinder for Sealing Mechanism | SDA25x100 |
| – Electric Heating Tube | 0.35 kW |
| – Material Receiving Device | SDA60x80 |
| – Additional Cylinder | SDA32x40 |
| – Three-axis Cylinder | TCM40x175 |
| Conveyor | 0.12 kW motor with speed range 4–20 m/min |
| Bagging Quantity | 3 – 4 bags per batch |
| Dimensions | length × width × height = 3200 mm × 1000 mm × 2900 mm |
| Machine Weight | Approximately 1300 kg |
