Purpose

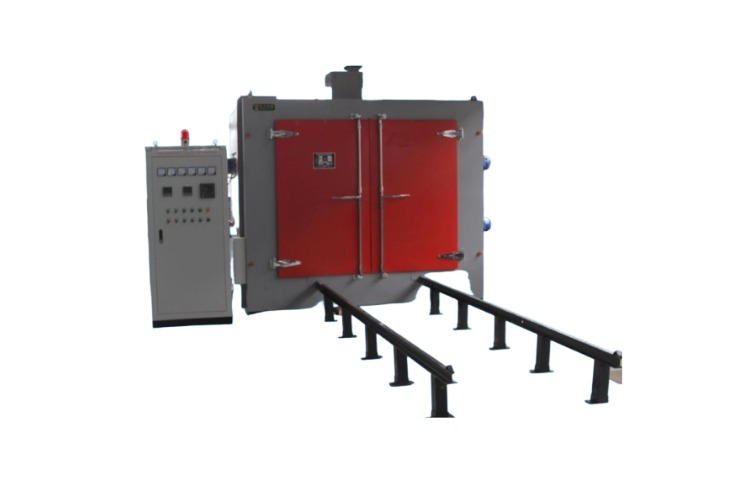

Hot treatment and curing of drum brake pads for commercial vehicles.
Technical Parameters
| Item | Parameter |
| Studio dimensions | 2100×1500×1700mm (width×depth×height, with height measured from the inner chamber) |
| Operating temperature range | Ambient temperature to 25°C |
| Temperature uniformity | ±2% |
| Heating duration | ≤80 minutes |
| Heating capacity | 3.4kW × 21 units = 71.4kW |
| Fan power | 1.1kW × 8 units |
| Exhaust unit power | 0.75kW × 1 unit |
| Electrical control | Standalone control system (1 main unit) |
| External rail system | 2.50*2 light rails (15kg/m) with 2 sets of rail brackets |
| Equipment manual | 1 copy |
