Purpose

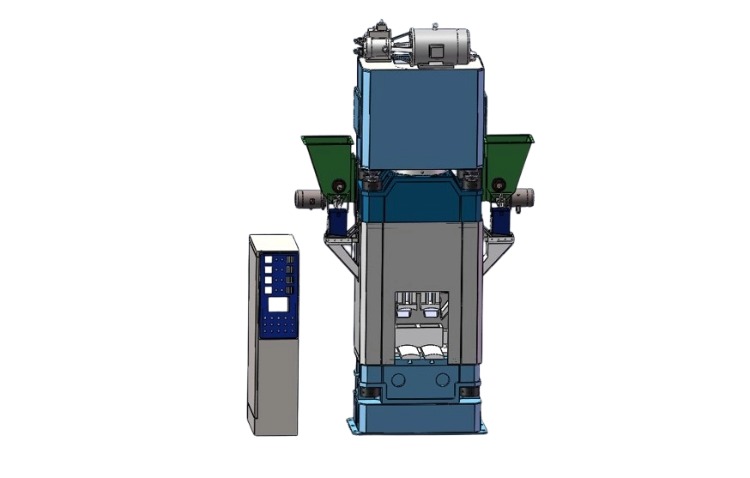

This series of hydraulic presses is special forming equipment for the brake pad industry, widely applied to the automatic weighing and forming process of various formula materials in brake pad production.
Performance and Features
The hydraulic system of this hydraulic press series adopts advanced two-way cartridge valve technology. The electrical system is equipped with a human-machine interface touch screen, PLC control system, photoelectric switches and other advanced components to realize all process actions.Equipped with an automatic weighing mechanism, the machine completes automatic weighing of raw materials with different formulas and automatic pressing processes. It features high automation degree and simple, convenient operation.
Technical Specifications
| Item | Unit | HP77 | |||
| 200 | 250 | ||||
| Nominal Force | KN | 2000 | 2500 | ||
| Max Working Pressure of Hydraulic System | Kpa | 25 | 25 | ||
| Main Cylinder Stroke | mm | 450 | 450 | ||
| Return Force | KN | 471 | 534 | ||
| Max Opening Height of Slide | mm | 800 | 800 | ||
| Slide Speed | No-load | mm/s | 80 | 100 | |
| Working | mm/s | 4-7 | 4-7 | ||
| Return | mm/s | 40 | 40 | ||
| Working Table Size | Left-Right | mm | 1100 | 1100 | |
| Front-Rear | mm | 670 | 670 | ||
| Height of Working Table to Ground | mm | 700 | 700 | ||
| Overall Dimension | Left-Right | mm | 2000 | 2000 | |
| Front-Rear | mm | 710 | 710 | ||
| to Ground | mm | 3750 | 3800 | ||
| Motor Power | KW | 11 | 15 | ||
